It incorporate the Taiwan latest features in steel stud and track manufacturing technology with advanced PLC control system. Applicable material

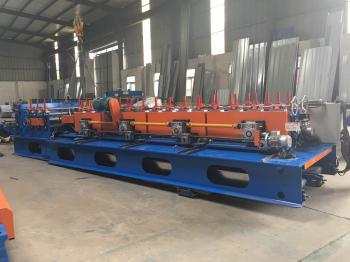

      C60-250 Purlin Roll Forming Machine (Flying Saw Cutting)


C Purlin Roll Forming Machine


1.Main features of quickly change C purlin roll forming machine


    The advantages of C purlin machine AUTOMATIC size-change type are as follows:

    1.Produce different purlin size without changing rollers or spacers.

    2.No need changing cutter for different size.

    3.Easy operation, low maintenance cost

    4.Infinite sizing(any size within machine range),help to save material

    5.Optional Punch hole at any position of purlin web side and flange side



2.Detailed Images of C shaped steel forming machine


    Machine Parts

        1) C purlin machine punching system

        Brand: BMS    Original: China

        with 3 cylinder(one cyinder for single hole and 2 cylinders for dual-holes.


      C Purlin Roll Forming Machine


        2)   C purlin machine rollers

        Rollers manufactured from high quality bearing steel GCr15, CNC lathes, Heat Treatment.

        with black treatment or Hard-Chrome Coating for options.

        With feeding material guide, body framemade from 400# H type steel by welding


C Purlin Roll Forming Machine



       3) C purlin machine hydraulic pre cutter

        No need to change cutter for different size,

        made by high quality mold steel Cr12 with heat treatment

        Cutter frame made from high quality 30mm steel plate by welding
        Pre-punching & Pre-cutting, stop to punch, stop to cut
        hydraulic motor:7.5KW, Hydraulic pressure range: 0-16Mpa


C Purlin Roll Forming Machine



        4) C purlin machine encoder

        International brand: Japan koyo / Omron . Accurate calulating.


C Purlin Roll Forming Machine



        5) C purlin machine flying saw

        Easy operation, one cutter for all different size


C Purlin Roll Forming Machine


        6) C purlin machine decoiler

        Manual Decoiler: one set

        Un-powered,manually control steel coil inner bore shrinkage and stop

        Max. feeding width: 500mm, coil ID range 470mm±30mm

        Capacity: Max. 3Ton
